Discovering water pooled around the base of your residential water heater is a stressful moment for any homeowner. The immediate assumption is usually a catastrophic internal breakdown requiring an emergency full system replacement costing thousands of dollars. However, water on the floor does not automatically mean the appliance is ruined. When evaluating water heater pressure relief valve weeping vs tank failure US homeowners often discover that the problem stems from a simple safety component functioning exactly as designed or a failed expansion vessel rather than a destroyed inner vessel.
Residential storage-tank water heaters rely on a precise balance of water pressure, thermal expansion management, and structural containment. Understanding where the water originates, why it is leaking, and whether the underlying cause is repairable requires looking beyond the puddle itself. This guide breaks down the mechanical operations, diagnostic steps, economic choices, and preventive care required to differentiate a temporary safety discharge from an unrepairable internal tank breach.
Understanding the Mechanical Differences: Valve Weep vs. Tank Breaches
To accurately diagnose the source of standing water, you must first understand the physical layout and structural composition of a standard residential storage tank water heater. What appears to be a single metal appliance is actually an assembly of nested components, thermal insulation, and pressure-rated safety valves.
A standard storage-tank water heater consists of a heavy-gauge carbon steel inner vessel lined with a micro-thin layer of vitreous enamel, commonly referred to as porcelain glass. This glass lining protects the structural steel from rapid rust and corrosion caused by heated, oxygen-rich domestic water. Surrounding this steel tank is a high-density polyurethane foam insulation blanket, all enclosed within an outer painted sheet-metal jacket.
When water accumulates on the floor or drain pan below the appliance, it originates from one of two fundamentally distinct failure modes:
- External pressure control discharge: The Temperature and Pressure (T&P) relief valve, or an attached thermal expansion vessel, discharges water externally due to elevated system hydraulic pressure or excessive water temperature. The structural integrity of the main steel tank remains completely intact.
- Internal vessel structural breach: Microscopic cracks form in the internal glass lining, allowing hot water to contact the raw carbon steel vessel. Over time, oxygen and minerals eat through the steel shell. Water escapes into the foam insulation layer, trickles down under gravity, and emerges along the bottom seams of the outer metal jacket.
The distinction between these two scenarios is absolute. An external valve discharge or fitting leak is a serviceable plumbing event that can usually be resolved for a fraction of the cost of a new water heater. Conversely, a breached internal steel shell is completely unrepairable and requires immediate unit replacement.
The Mechanics of T&P Valve Weeping and Thermal Expansion
Every residential tank-style water heater installed in the United States is equipped with a safety device known as a Temperature and Pressure Relief Valve (commonly called the T&P valve). Plumbing safety codes require this valve to prevent severe over-pressurization or superheated steam explosions caused by runaway heating elements or runaway gas controls.
Standard residential T&P valves are mechanical safety devices engineered to open under two specific threshold conditions: when internal water temperature reaches 210°F (99°C), or when internal hydraulic water pressure reaches 150 pounds per square inch (PSI). When either limit is exceeded, an internal spring mechanism lifts off its rubber seat, discharging water out through a dedicated copper or CPVC discharge pipe toward the floor or drain pan.
What Causes T&P Valve “Weeping”?
“Weeping” refers to a steady drip, intermittent trickle, or minor dribble from the open bottom of the T&P discharge tube. Unlike a sudden high-volume blowoff caused by a runaway thermostat, weeping is usually triggered by minor pressure fluctuations within a closed home plumbing network.
The primary driver of T&P valve weeping in modern homes is thermal expansion inside a closed plumbing system. When cold domestic water enters the storage tank and heats from 50°F to 120°F, it expands in volume by approximately 2 to 3 percent. In older, open plumbing configurations, this expanding volume simply pushed back into the municipal water main without increasing internal pipe pressure.
However, contemporary plumbing standards across most US jurisdictions require check valves, backflow preventers, or Pressure Reducing Valves (PRVs) at the home’s water meter. These safety valves create a closed loop. When water inside the heater expands during a heating cycle, it has no room to expand. Because water is nearly incompressible, internal hydraulic pressure spikes rapidly—often surging from a normal baseline of 50 PSI past the T&P valve’s 150 PSI limit.
To relieve this dangerous force, the T&P valve opens slightly to bleed off small amounts of water. Once hydraulic pressure drops back below 150 PSI, the valve spring pulls the seat closed again. This cyclical opening and closing is referred to as thermal expansion weeping.
Signs of a Failing Thermal Expansion Tank
To manage thermal expansion without stressing plumbing lines or triggering the T&P valve, building codes mandate installing a thermal expansion tank on the cold water inlet line near the water heater. A thermal expansion vessel is a small steel tank divided internally by a heavy-duty rubber diaphragm or bladder. One side of the bladder is pressurized with air (typically pre-charged to match incoming house static water pressure), while the other side connects directly to the cold water supply pipe.
As hot water expands in the main storage tank, it pushes against the flexible rubber diaphragm inside the expansion vessel, compressing the air cushion rather than spiking system pressure. However, thermal expansion tanks have a limited operating life, typically failing after 4 to 8 years of continuous duty.
When the internal rubber bladder inside the expansion vessel tears or degrades, water fills both sides of the expansion tank, making it completely waterlogged. With no compressible air cushion left to absorb thermal expansion, every heating cycle triggers immediate pressure surges, forcing the primary T&P valve to weep continuously. Homeowners often misinterpret this recurring drip as a defective water heater, when the root cause is simply a failed expansion vessel.
The Mechanics of Glass-Lined Tank Failure
While a weeping relief valve indicates thermal pressure buildup, water pooling continuously around the metal bottom rim of the outer jacket points to a terminal structural failure of the internal storage tank.
Residential water heater tanks are constructed by welding carbon steel plates into a cylindrical vessel. Because untreated steel corrodes rapidly when exposed to hot, oxygenated water, manufacturers spray a wet slurry of porcelain enamel across the inner surface and bake it in high-temperature industrial kilns at over 1,500°F. This fuses the ceramic material directly to the steel, creating a smooth glass barrier.
Why Glass Linings Eventually Fail
Despite advanced manufacturing, porcelain glass coatings are not permanently immune to wear. Over years of thermal cycles, several physical factors degrade this interior lining:
- Thermal stress and flexing: As the heavy steel cylinder expands during active heating and contracts during cooling, micro-fissures form across the rigid glass surface.
- Aggressive water chemistry: Water with low pH, elevated total dissolved solids (TDS), or high chloramine concentrations attacks exposed steel at microscopic fractures in the glass coating.
- Sediment accumulation: Mineral deposits, predominantly calcium carbonate, settle at the bottom of the tank over time. In gas water heaters, thick sediment layers trap heat from the burner below, creating localized heat zones that fracture the glass lining.
- Depletion of the sacrificial anode rod: Every glass-lined tank incorporates a sacrificial anode rod made of magnesium, aluminum, or zinc. Through electrochemical action, the anode rod corrodes intentionally to protect exposed steel at microscopic glass cracks. Once the anode rod is fully consumed, corrosive forces focus entirely on the raw carbon steel vessel walls.
Once water penetrates the glass barrier and reaches the structural steel shell, oxidation occurs rapidly. Iron oxide (rust) weakens the steel until a pinhole leak develops under pressure. Hot water then escapes the steel vessel, saturates the surrounding polyurethane foam insulation layer, and flows downward under gravity, eventually emerging at the bottom seam, drain pan, or lower jacket base.
Step-by-Step Diagnostic Method for Water Heater Leaks
Before contacting a plumbing service or purchasing a replacement appliance, follow this systematic diagnostic method to locate the exact source of water.
Step 1: Perform the Dry-and-Watch Inspection
Water readily travels along copper lines, electrical wiring conduits, and internal jacket panels, making top-side leaks appear near the bottom base. Shut off power to electric units at the main breaker panel, or turn a gas water heater control valve to the “PILOT” setting. Use towels or a wet/dry vacuum to thoroughly dry the top of the tank, all pipe fittings, the T&P valve, and the floor surrounding the unit.
Leave the water heater unused for 30 to 60 minutes, then inspect the unit with a bright flashlight and dry paper towels to trace fresh moisture trails.
Step 2: Inspect Upper Plumbing Fittings and Dielectric Unions
Wipe all cold water inlet connections, hot water outlet lines, flex connectors, shut-off valves, and dielectric nipples on top of the appliance. A minor drip from a threaded joint at the top of the tank can run behind the outer metal jacket, pooling beneath the unit and imitating an internal tank leak.
Step 3: Check the T&P Relief Valve Discharge Tube
Locate the T&P safety valve, positioned on the upper side or top of the tank shell. Inspect the copper, CPVC, or PEX discharge tube extending downward toward the floor drain or catch pan. Is water actively dripping or trickling from the open bottom end of this pipe?
- If water drips directly out of the bottom open end of the discharge tube, the issue is isolated to the T&P valve seat, thermal expansion pressure, or high home water pressure.
- If the discharge tube opening is completely dry, but moisture is visible around the threaded port where the T&P valve screws into the tank wall, the valve threads or internal vessel port may be compromised.
Step 4: Test the Thermal Expansion Tank
If the T&P valve is weeping, locate the thermal expansion vessel installed on the cold water supply line. Unscrew the plastic protective cap from the Schrader valve (identical to a car tire valve stem) located on the end of the expansion tank. Depress the valve core pin briefly with a small screwdriver:
- If pressurized air releases cleanly: The internal rubber diaphragm is intact. Test the static air pressure using a tire gauge while the household water pressure is relieved to ensure it matches incoming main water pressure.
- If water spurts out of the air valve: The internal rubber bladder has ruptured, and the expansion vessel is fully waterlogged. Replacing this tank will resolve the T&P valve weeping issue.
You can also lightly tap the side of the expansion tank with a metal tool from top to bottom. A functional tank sounds hollow on the air side and dull on the water side. A waterlogged tank produces a uniform, heavy thud throughout.
Step 5: Measure Household Static Water Pressure

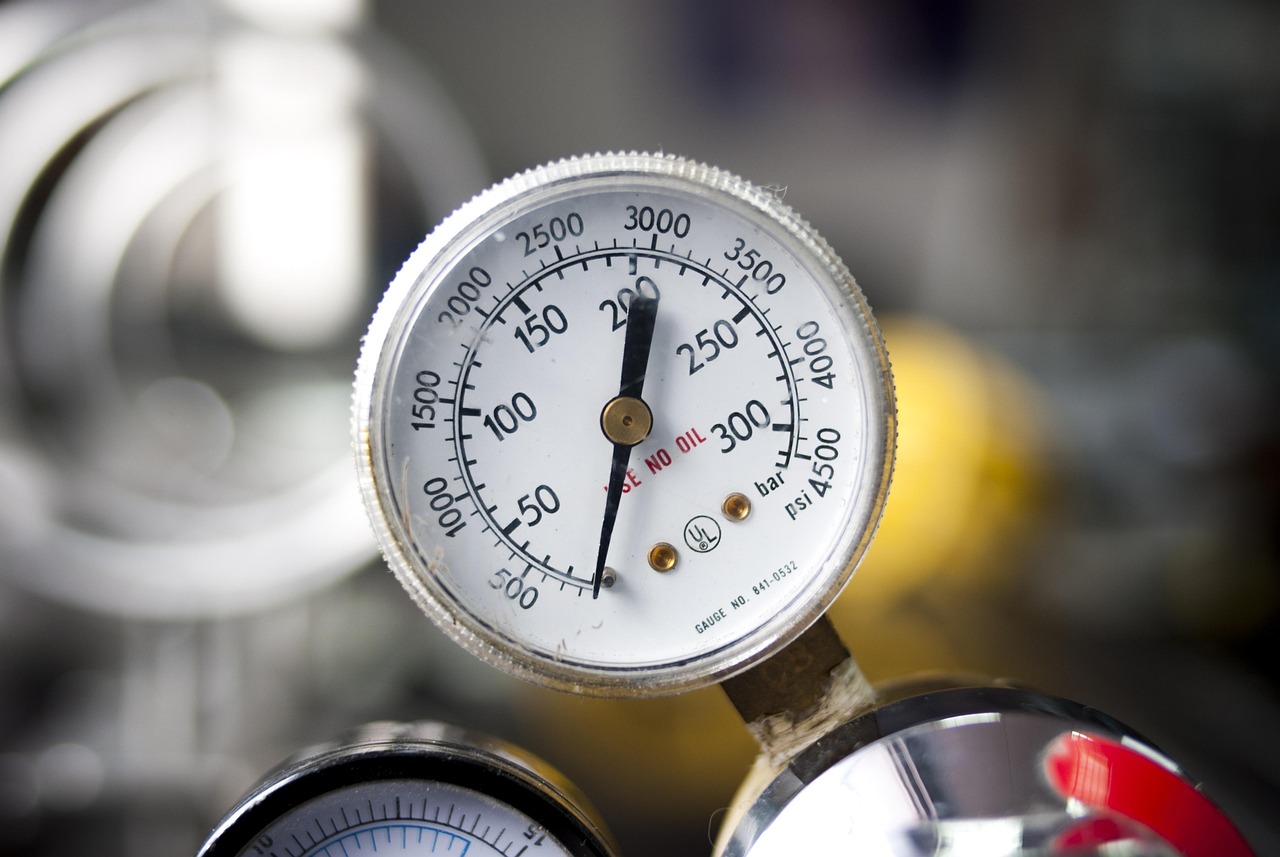

Screw an inexpensive water pressure gauge equipped with a hose-bib connection onto an outdoor faucet or the water heater’s bottom drain valve. Ensure no water fixtures are running inside the home and note the static baseline pressure.
Standard indoor static water pressure should measure between 40 and 70 PSI. If your reading exceeds 80 PSI, your main municipal Pressure Reducing Valve (PRV) has failed or requires adjustment. Excessive static incoming pressure will push a properly operating T&P valve open continuously.
Step 6: Inspect the Base, Burner Chamber, and Outer Jacket Seams
If upper plumbing joints, the T&P discharge line, and the expansion vessel are completely dry, turn your attention to the lower jacket assembly. Shine a flashlight into the burner chamber door (on gas models) or behind the lower electrical heating element cover plate (on electric models).
Check for heavy rust flaking, bubbled jacket paint, white mineral buildup, or water running directly out from beneath the sheet-metal shell. If water originates inside the internal insulation blanket and drips along the bottom metal rim accompanied by reddish rust stains, the internal glass-lined steel vessel has failed structurally.
Side-by-Side Comparison Matrix
Evaluating water heater pressure relief valve weeping vs tank failure US home situations is straightforward when comparing physical symptoms directly. The decision matrix below summarizes key differences:
| Diagnostic Criteria | T&P Valve Weeping / Thermal Expansion Issue | Internal Glass-Lined Tank Failure |
|---|---|---|
| Water Discharge Origin | Directly out of the open end of the rigid T&P discharge pipe | Seeping from bottom jacket seams, base rim, or burner chamber |
| Water Clarity & Color | Clear, clean hot water | Discolored, frequently showing red-brown rust or mineral flakes |
| Timing of Leak | Intermittent; peaks during or immediately following active heating cycles | Continuous drip or steady flow regardless of burner/element operation |
| System Pressure Reading | Spikes above 80–150 PSI during heating cycles; excess static pressure | Normal household static pressure (40–60 PSI) |
| Expansion Vessel Condition | Often waterlogged, missing, or improperly pre-charged | Irrelevant; main internal steel container is breached |
| Appliance Age Profile | Any age (occurs on brand-new units if system pressure is uncontrolled) | Typically 8 to 12+ years old (past anode rod operational life) |
| Repairability Status | Fully repairable via valve replacement, PRV reset, or expansion tank swap | Unrepairable; requires complete water heater replacement |
Economic Analysis: Repair Costs vs. Full Replacement
Determining whether your water puddle is caused by pressure relief issues or an internal tank failure sets your financial commitment. Fixing a localized plumbing valve preserves existing equipment, whereas misdiagnosing a true tank breach can lead to costly structural water damage.
Repair Cost Breakdown for Valve and Pressure Control Components
If your diagnostic inspection points to an external pressure management component, component repairs are affordable and far simpler than replacing the whole appliance:
- T&P Valve Replacement: A replacement brass T&P relief valve typically costs $15 to $35 for parts. Professional plumbing labor adds $150 to $300 depending on regional service rates.
- Thermal Expansion Tank Replacement: A replacement 2-gallon or 4.5-gallon expansion tank ranges from $40 to $90 for equipment. Professional replacement, including correct air pre-charge calibration, typically costs $220 to $450 in total labor and materials. Evaluating thermal expansion tank replacement cost factors shows this is a very cost-effective fix that safeguards your primary water heater.
- Pressure Reducing Valve (PRV) Replacement: If elevated municipal main pressure forces the T&P valve open, installing a new main household PRV ranges from $250 to $500 installed.
Replacement Cost Considerations for Tank Breaches
When the internal glass-lined carbon steel tank rusts through, sealants, patches, or external wraps cannot safely contain pressurized hot water. A complete unit replacement is mandatory.
A standard 40-gallon or 50-gallon atmospheric gas or electric storage water heater ranges from $600 to $1,500 for the tank alone. Fully installed costs—including municipal plumbing permits, code-required drain pans, expansion vessels, seismic strapping, disposal of the old appliance, and licensed plumbing labor—range from $1,400 to $3,200 across most US markets.
Catching a water heater bottom rust leak early lets you schedule replacement calmly, avoiding emergency holiday service rates and expensive property insurance claims for soaked floor joists, subflooring, and finished basements.
Common DIY Diagnostic Mistakes to Avoid
Misinterpreting water heater leaks often results in unnecessary expenses or severe home safety hazards. Avoid these common diagnostic errors:
Mistake 1: Capping or Plugging the T&P Valve Discharge Pipe
This is the most dangerous error a homeowner can make. When a T&P valve weeps continuously, threading a metal cap, brass plug, or blind fitting onto the end of the discharge tube stops the visible drip, but it completely disables the primary safety relief mechanism. If temperature controls fail or thermal expansion surges, an unvented water heater can reach explosive pressure levels, leading to catastrophic structural failure and major structural damage.
Mistake 2: Replacing the T&P Valve Without Checking System Pressure
Homeowners frequently replace a weeping T&P valve, only to find the new valve continues to drip. In most instances, the original valve was fully functional—it was simply doing its job by responding to excessive static pressure or uncontrolled thermal expansion in a closed plumbing system. Always test baseline static pressure and verify expansion vessel operation before replacing a T&P valve.
Mistake 3: Confusing Operational Condensation with a Tank Leak
When a new water heater is filled with cold water for the first time, or when high hot water usage completely drains the tank, cold incoming water causes atmospheric moisture to condense on the cool outer surface of the internal steel vessel. This condensation drips down into the burner chamber or onto the floor, mimicking a true leak. Allow the appliance to heat fully to 120°F and re-check before assuming the steel tank is breached.
Mistake 4: Over-Tightening Plumbing Fittings
When fixing a top fitting leak, using excessive torque on threaded brass couplings or dielectric nipples connected to copper supply lines can strip soft threads or crush internal rubber gaskets, causing concealed leaks behind the jacket insulation blanket later on.
Long-Term Preventive Maintenance to Stop Leaks Before They Start
Routine preventive maintenance eliminates thermal pressure problems and slows glass-lined tank corrosion, significantly extending your water heater’s operational lifespan.1. Test the T&P Valve Annually
Briefly lift the test lever on your T&P safety valve once a year to flush out accumulated mineral scale and confirm the internal valve seat moves freely. Always place a bucket beneath the discharge pipe before testing. The valve should open smoothly, discharge a clear stream of hot water, and snap firmly shut when released without continued weeping.
2. Verify Expansion Tank Air Pre-Charge
Check the static air pressure inside your thermal expansion tank every 12 to 18 months using a tire pressure gauge. Always relieve system water pressure before measuring air pressure. Use a manual bicycle pump to adjust internal air bladder pressure so it matches your home’s main incoming static water pressure.
3. Flush Tank Sediment Annually
Connect a garden hose to the lower drain valve and flush 3 to 5 gallons of water out of the tank every year. Flushing mineral sediment prevents localized thermal hot spots that fracture the glass lining and keeps the lower drain assembly free of rust slurry.
4. Inspect and Replace the Sacrificial Anode Rod
Inspect the sacrificial anode rod every 3 years. The anode rod is threaded into the top of the water heater tank shell. Unscrew the rod and inspect its remaining diameter. If the core steel wire is exposed along more than 6 inches of the rod, replace it immediately. Replacing a $30 to $50 anode rod can extend the service life of a glass-lined tank from 8 years to well over 15 years.
Final Decision Framework: Repair or Replace?
Use this diagnostic checklist when evaluating water under your water heater:
- Water dripping directly from the open discharge pipe + elevated pressure reading: Replace the thermal expansion tank, adjust or replace the main home PRV, or swap out the T&P valve if worn. Keep the existing water heater.
- Water dripping from top threaded connections or dielectric unions: Re-seal threaded joints with Teflon tape or replace flexible supply connectors. Keep the existing water heater.
- Water weeping from the T&P valve threaded port (corroded vessel opening): If internal tank port threads are deeply rusted and compromised, replace the complete water heater.
- Water leaking continuously from lower jacket seams accompanied by visible rust: The internal glass-lined steel vessel has suffered an unrepairable breach. Shut off fuel/power supplies and cold water inlet valves immediately. Replace the water heater.
By taking a structured, step-by-step approach to inspecting water around your water heater, you can clearly separate simple pressure safety valve leaks from unavoidable internal tank failures—saving money while protecting your home from water damage.
